Guide Clip
Guide clips are essential mechanical components used in elevator systems to secure guide rails to the building structure. They ensure that the rails remain firmly aligned and stable, allowing smooth and safe vertical movement of the elevator car and counterweight.
Function & Purpose
Guide clips serve several key purposes:
- Rail Fixation: Securely hold the guide rails in position against the shaft wall or support brackets.
- Alignment Maintenance: Maintain precise vertical alignment of the rails for smooth elevator travel.
- Load Transfer: Transfer dynamic and static loads from the guide rails to the building structure.
- Vibration Control: Help reduce vibration and noise during elevator operation.
Types of Guide Clips
1. Rigid Guide Clips
* Provide a firm, non-adjustable hold.
* Used where alignment is already precise.
2. Adjustable Guide Clips
* Allow fine adjustments during installation.
* Compensate for minor misalignments in shaft construction.

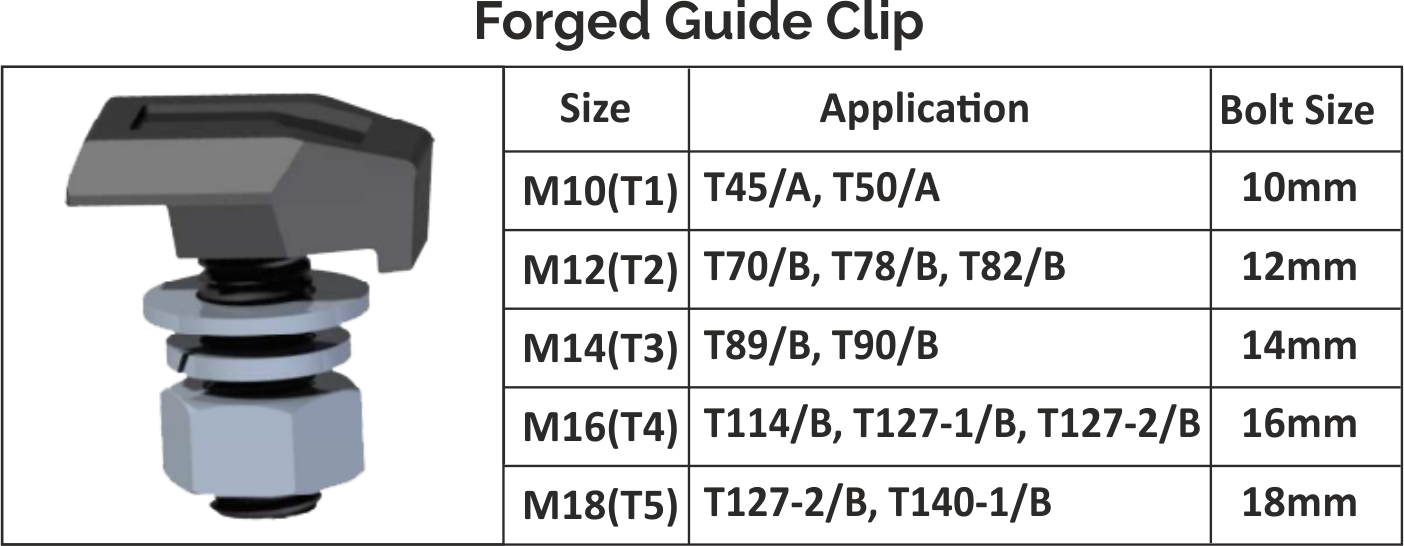

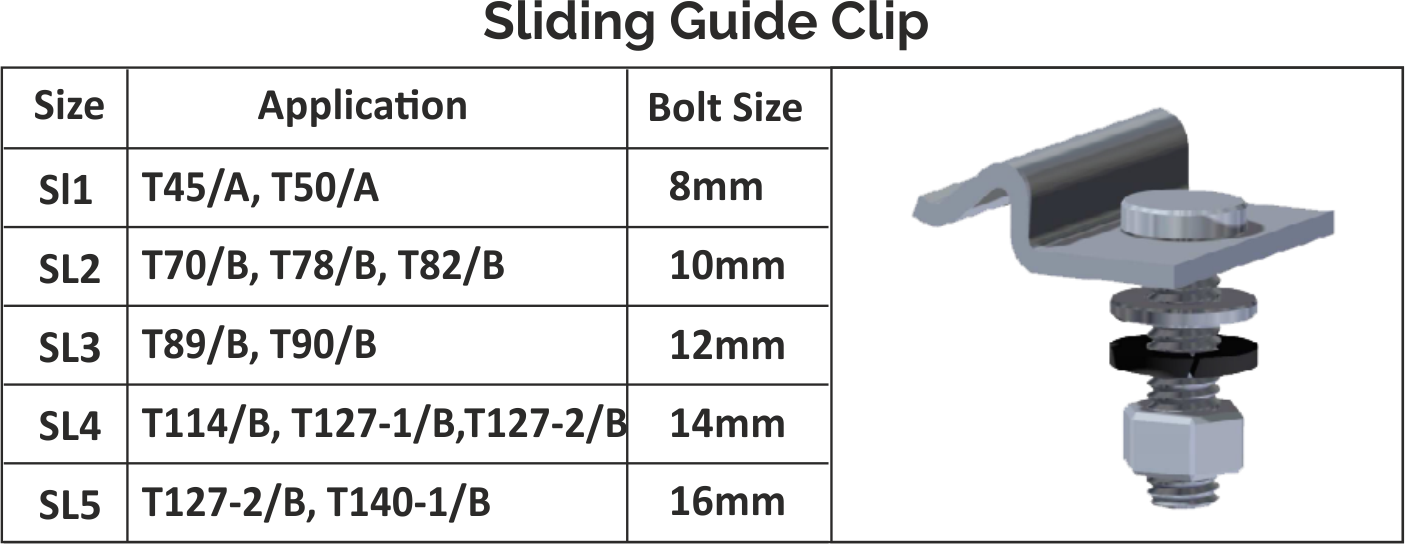

3. Sliding (Floating) Clips
* Permit slight movement due to thermal expansion.
* Reduce stress on rails and brackets.
4. Heavy-Duty Clips
* Designed for high-load applications (e.g., freight elevators).
Material & Construction
Guide clips are typically manufactured using:
- Mild Steel (MS) – Common and cost-effective
- Cast Iron – High strength and durability
- Ductile Iron – Better flexibility and shock resistance
- Galvanized or Coated Steel – Corrosion resistance
Surface treatments may include galvanization, powder coating, or anti-rust finishes.
Installation Considerations
- Proper spacing between clips (as per elevator standards)
- Accurate alignment using plumb lines or laser tools
- Secure anchoring to brackets or concrete walls
- Torque-controlled fastening to avoid loosening
Standards & Compliance
Guide clips must comply with international and regional elevator standards such as:
EN 81 (European Standards)
IS Codes (India)
ASME A17.1 / CSA B44 (North America)
Advantages
- Enhances passenger safety
- Ensures smooth and jerk-free ride
- Minimizes rail wear and tear
- Improves overall elevator lifespan
